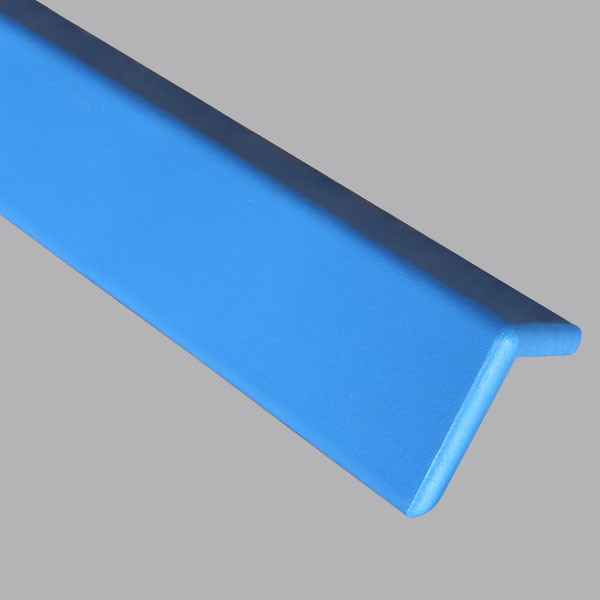

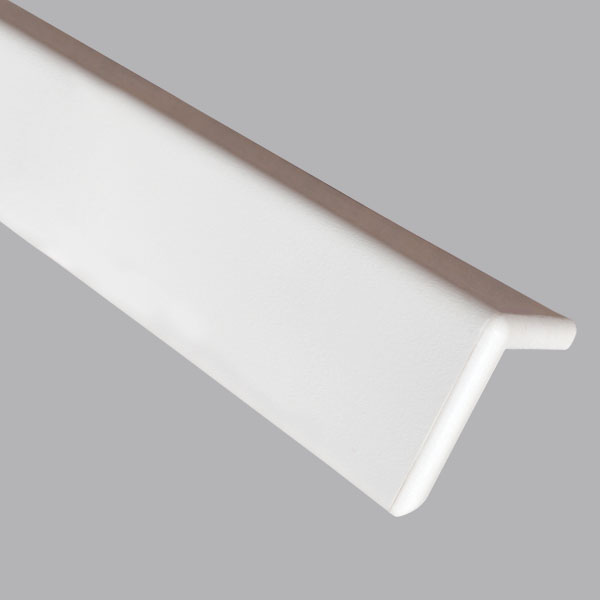

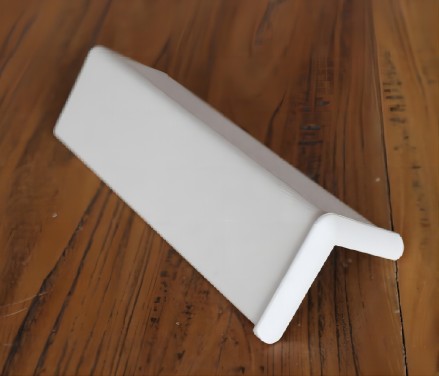

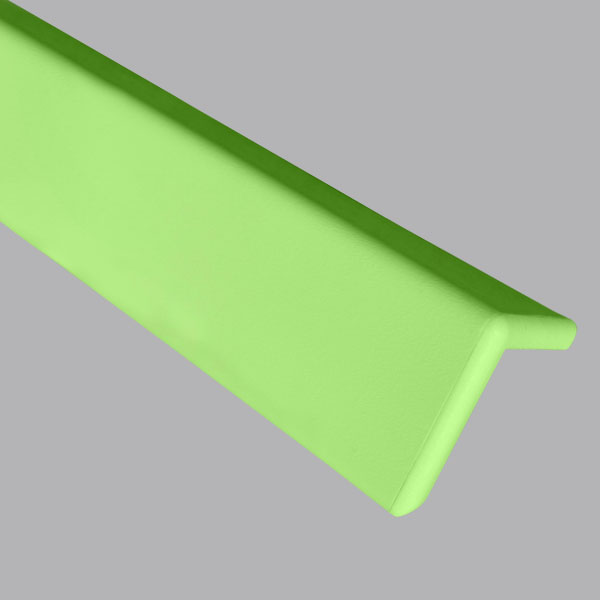

70mm/75mm Corner Guard with Aluminum Retainer

70/75mm Wall Corner Protection Guard, Corner Guard with Aluminum Retainer

1. Data Sheet

2. Drawing

3. Product Characteristics

New PVC/Vinyl Materials:

2.0mm vinyl surface has ant-collision, anti-scratch and abrasion resistance, antibacterial and environmental protection functions.

The surface layer has anti slip fine lines and anti-fouling treatment,which is easy to clean.

Solid And Durable:

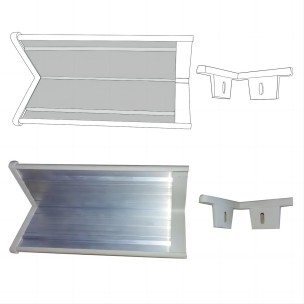

The 6063 aluminum is oxidized to ensure no rust and it can be used for a long time.

Comfortable Touching:

The corner guard is designed in accordance with the requirments of human mechanics, and the hand-held areas has a comfortable and reasonable arc.

         SJ-70B with Flat End Cap                     SJ-70C with Extruded End Cap

1）Anti-bacterial and strongly anti-mildew

2） Chemical resistance and strong corrosion resistance

3）Free Formaldenhyde and green envionment

4）No benzene,no heavy metal,can be recycled and used

5）Anti-collosion and wear-resistant with super weather resistance

6）The surface of wall panel is easy to clean

7） Rich colors

8） Easy installation

4. Installation Instruction

1）Cut aluminum retainer (rubber strip) to designed length

2）Drill the holes

3）Measure and transfer the handrail mounting hole locations from the bracket,elbow.

4）Cut the vinyl cover to the lengths between returns and elbows.

5. Clean and Maintenance Instructions

1) Daily cleaning and maintenance, clean the dust layer with a clean cloth

3) Long time stains: use a clean cloth  and neutral cleaner to wipe

4) Use dishcloth to add warm water or cleaner to wipe, then use dry dishcloth to wipe water mark.

Cleaning Tools

1) clothes: clean clothes or scouring pad

2) Detergent: Use a neutral detergent or alcohol.

6. Projects

7. Packing and Transportation
