MD-01T TPU Tactile Paving Tile (Bar Pattern)

The MD-01T TPU Tactile Paving Tile – Bar Pattern serves as a directional tactile ground surface indicator (TGSI), providing clear pathway guidance for visually impaired pedestrians. Constructed from TPU material, it combines slip resistance, flexibility, and UV stability, making it suitable for both indoor and outdoor use.

Its raised bar design enhances orientation and mobility in public areas such as airports, hospitals, train stations, and commercial walkways. The tile is available in multiple colors to meet contrast requirements of accessibility standards.

Product Details

Model

MD-01T (Bar Pattern)

Dimensions

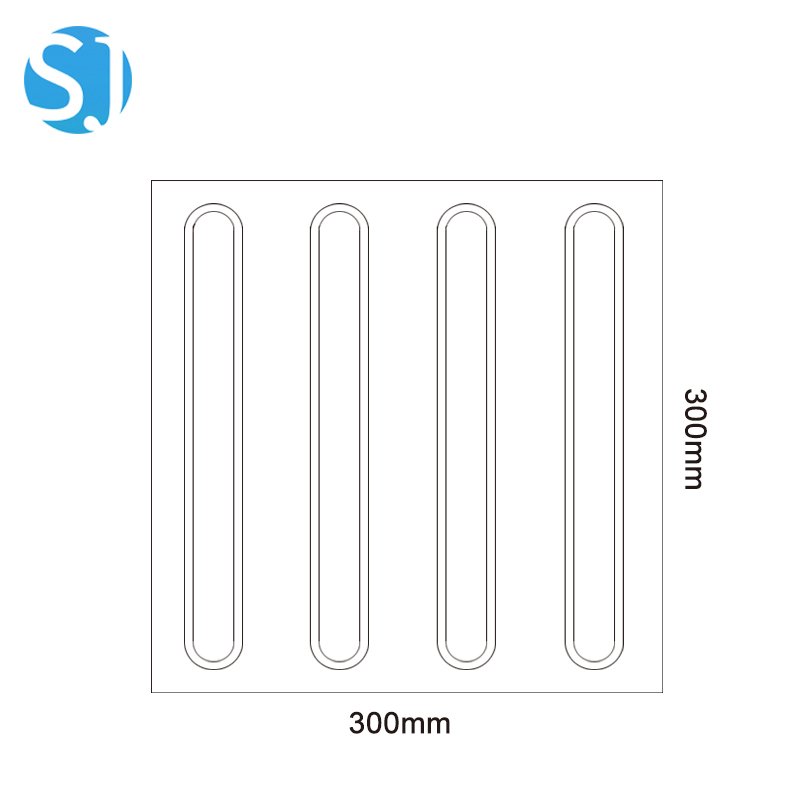

300 × 300 × 5.0 mm (Bar height: 4.7 mm)

Material

TPU (Thermoplastic Polyurethane)

Color Options

Yellow, Black, Grey, Red, Custom options available

Type / Function

Directional tactile paving (raised bar indicators)

Performance

Slip resistant, impact resistant, weather resistant

Standards Compliance

ADA / ASTM / EN / ISO / CSA / Title 24

Applications

Corridors, airports, train & bus terminals, hospitals, shopping malls

Installation

Adhesive fixing / Mechanical fixing
