Product Features
· Straight horizontal profile — the universal grab bar configuration for ADA-compliant accessible bathrooms, showers and toilet areas
· SUS304 or SUS316 stainless steel — specify 304 for standard indoor environments; 316 for coastal, marine or high-humidity applications
· Mirror polished / satin brushed / matte surface finish — three options to match commercial bathroom specifications
· 32mm or 35mm diameter (ADA-compliant graspable range)
· 150 kg minimum load capacity
· Concealed mounting — wall flanges with decorative cover plates; no exposed screw heads
· Custom lengths — standard 300–900mm; custom sizes available
· ADA compliant — diameter, wall clearance (38mm) and load capacity per ADA Section 609
· OBM available — custom branding for contractor and distributor projects
Product Specifications

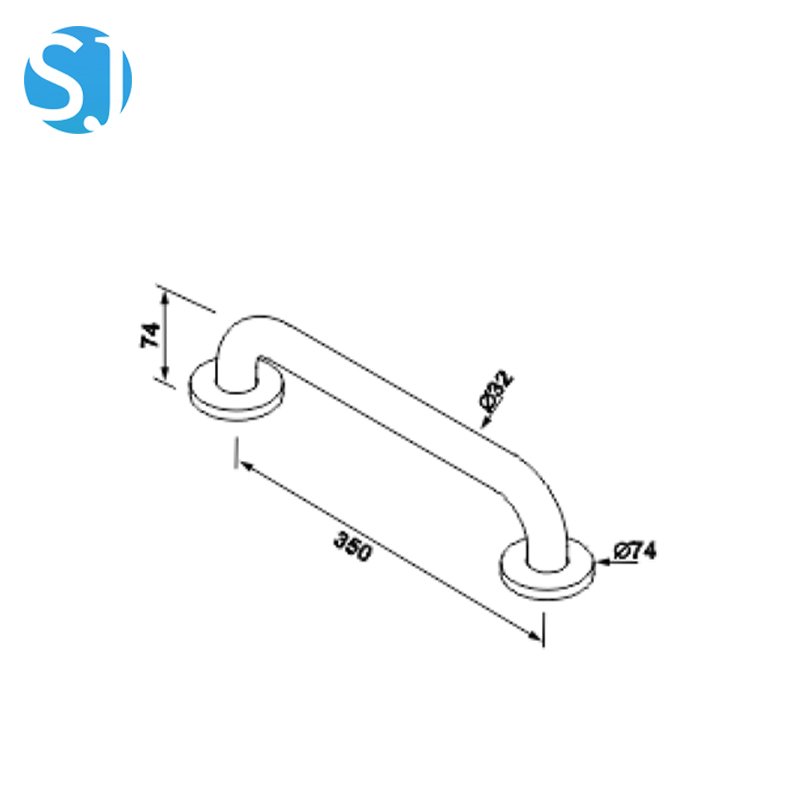

| Model | GB-023S |
| Type | Straight Stainless Steel Grab Bar |
| Material | SUS304 or SUS316 Stainless Steel |
| Diameter | 32mm or 35mm (ADA-Compliant Range) |
| Surface Finish | Mirror Polished / Satin Brushed / Matte |
| Wall Clearance | 38mm (Bar Surface to Wall Face) |
| Standard Lengths | 300 / 400 / 500 / 600 / 700 / 800 / 900mm |
| Custom Lengths | Available on Request |
| Load Capacity | ≥150 kg (≥330 lbs) |
| Mounting | Wall-Mounted, Concealed Screws |
| Standards | ADA Section 609 Compliant; CE Available on Request |
| Applications | Hotel Bathrooms, Public Restrooms, Hospitals, Nursing Homes, Government Buildings |
| MOQ | By Quantity — Project Order |
| Lead Time | 15–20 Business Days |
Applications
· Hotel accessible bathrooms — mirror polished finish integrates with premium bathroom hardware; standard accessible room specification for international hotels
· Hospital bathrooms and shower areas — satin brushed finish for clinical environments; easy disinfection without affecting surface finish
· Public accessible restrooms — ADA-compliant grab bar for new-build and renovation accessible toilet stalls
· Government buildings and civic facilities — ADA compliance in public building accessible bathrooms
· Nursing homes and residential care facilities — standard bathroom safety rail specification for long-term care bedrooms
· Commercial office building accessible bathrooms — ADA compliance for employer-provided accessible restroom facilities
Installation Steps
Same as GB-001 Installation Steps 1–9.
Additional notes for stainless steel:
· For mirror polished finish, protect the bar surface with tape or cloth during installation to prevent scratching from tools
· Use stainless steel fixing screws (SUS304 minimum) in all wet-area installations — galvanic corrosion between dissimilar metals will stain the wall and bar surface
· Clean the bar surface with stainless steel cleaner (not abrasive cleaners) after installation to remove any fingerprints or tool marks before handover
Product Advantages
· Premium finish options — mirror polished stainless integrates with hotel and luxury residential specifications in a way that nylon-coated bars do not; the correct specification for premium hospitality environments
· No coating to wear or chip — bare stainless steel finish is permanent; nylon-coated bars can chip at impact points over time; stainless is the maintenance-free long-term specification
· Full OBM availability — custom model numbers and branding for contractor and specification projects
FAQ
Q: What is the standard grab bar diameter for ADA compliance?
A: ADA Section 609.2 requires grab bar gripping surfaces to have an outside diameter between 1.25 and 2 inches (32–51mm). Our GB-023S is available in 32mm and 35mm diameter — both within the ADA-compliant range. The 35mm diameter is the most commonly specified for hospital and commercial installations.
Q: Which surface finish is easiest to maintain in a hospital bathroom?
A: Satin brushed finish is the recommended specification for hospital environments. It hides minor surface marks and water spots better than mirror polished, and is easier to clean without showing cleaning streaks. Mirror polished is preferred in hotel and hospitality environments where the visual appearance is the priority.
Q: Can GB-023S be used as a shower grab bar?
A: Yes. The GB-023S horizontal bar is suitable for shower wall mounting. For SUS304 in shower environments, ensure regular cleaning to prevent soap scum and mineral deposit buildup on the bar surface. For particularly wet or chemically aggressive shower environments (e.g., with heavy use of cleaning products), specify SUS316.
