Product Features
· Concentric ring grooves on dome face — circular groove pattern provides anti-slip traction and visual interest
· SUS304 or SUS316L stainless steel
· One-piece stamping construction
· Balanced anti-slip performance — ring grooves channel water away from the dome contact zone; better wet-condition grip than plain flat; cleaner aesthetic than checker diamond
· Good visual contrast against flat floor surfaces
· Suitable for indoor and sheltered outdoor applications

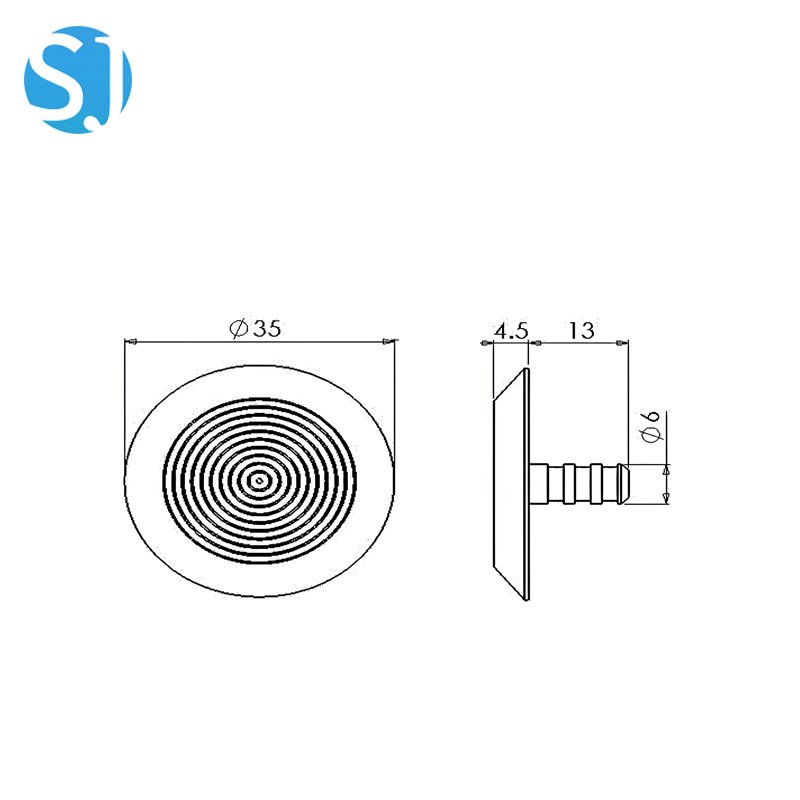

· Available in 25mm, 30mm and 35mm diameter
Product Specifications
| Model | Ring Grooved Tactile Stud |
| Type | Dome Warning Indicator — Dot / Hazard Warning Pattern |
| Material | SUS304 or SUS316L Stainless Steel |
| Construction | One-Piece Stamping |
| Surface Finish | Concentric Ring Grooves |
| Available Diameters | 25mm / 30mm / 35mm |
| Dome Height | Per ADA / AS/NZS / EN Standards |
| Installation Method | Embedded Drill-and-Fix / Epoxy Adhesive Surface Mount |
| Compatible Substrates | Concrete, Stone, Tile, Terrazzo, Metal |
| Standards Compliance | ADA / AS/NZS 1428.4.1 / EN 15209 / ISO 23599 |
| MOQ | By Quantity — Project Order |
| Lead Time | 15–20 Business Days |
Applications
· Transit station concourses (sheltered) — under-canopy platform areas and covered concourse stair heads
· Shopping centre entrances — covered entrance zone warning grids with light rain exposure
· Hospital main entrances and drop-off areas — semi-sheltered outdoor warning zones
· Airport terminal kerb-side areas — covered but wind-exposed drop-off zone warning grids
· Public building main entrances — covered entrance threshold warning indicators
· General commercial and institutional buildings — versatile indoor and sheltered outdoor specification
Product Advantages
· Versatile specification — ring grooved provides better wet grip than plain flat while maintaining a cleaner, less industrial appearance than checker diamond; the go-to specification for indoor-outdoor transitional zones (covered entrances, station concourses)
· Distinctive visual identity — the concentric ring pattern is visually distinctive and provides good contrast against most floor finishes without the industrial character of checker diamond
FAQ
Q: When is ring grooved the right choice versus checker diamond or plain flat?
A: Ring grooved is the ideal middle-ground specification: better wet-condition grip than plain flat, more architecturally refined than checker diamond. Choose ring grooved for covered entrances, transit concourses and semi-sheltered outdoor areas. Choose checker diamond for fully exposed outdoor areas. Choose plain flat for premium dry indoor environments.
