Product Features· 60mm wide aluminium profile — maximum coverage of the D series; largest anti-slip surface area
· Replaceable PVC anti-slip insert — clip-in replacement maintains anti-slip performance without full-profile replacement
· High-visibility option — yellow insert provides maximum step edge contrast for accessibility compliance
· Anodized or powder-coated finish — corrosion-resistant for indoor and outdoor stair applications
· Pre-drilled countersunk fixing holes — secure mechanical fix on concrete, tile, stone and timber
· Compatible with all common stair substrates
· Custom cut lengths available
Product Specifications
| Specification | Detail |
|---|
| Model | D60 |
| Type | Aluminium + PVC Insert Stair Nosing |
| Material | Aluminium Alloy Base + PVC Anti-Slip Insert |

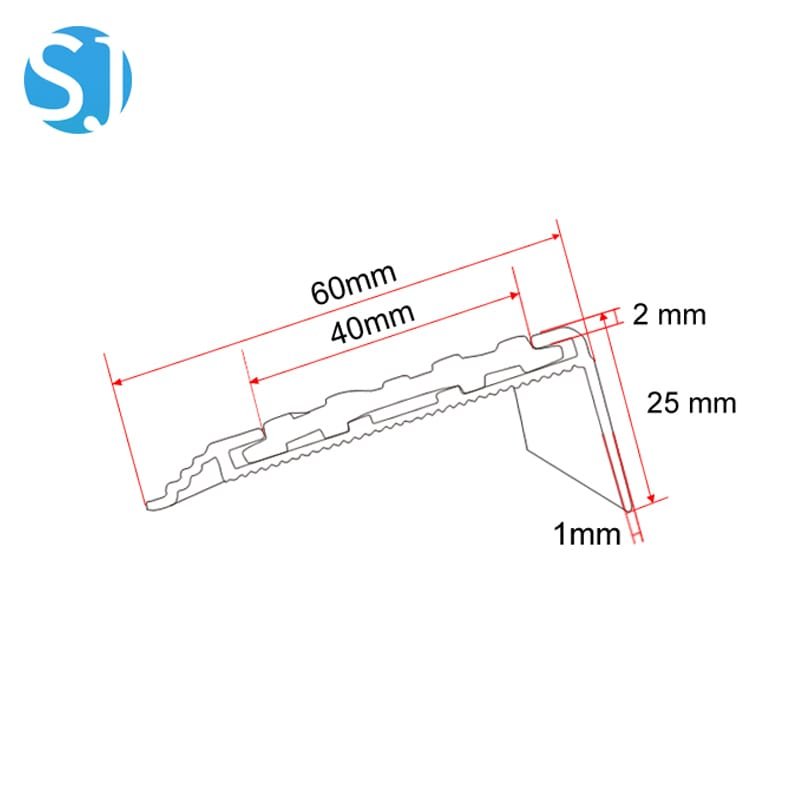

| Width | 60 mm |
| Height / Thickness | 25 mm |
| Surface Finish | Anodized or Sandblasted |
| PVC Insert Colours | Yellow, Grey, Black |
| Aluminium Colour | Silver (Standard), Black |
| Anti-Slip Method | Textured PVC Insert |
| Fixing Method | Countersunk Screws (Pre-Drilled) |
| Standard Lengths | 1 m, 1.5 m, 2 m, 2.5 m / Custom |
| Compatible Substrates | Concrete, Tile, Stone, Vinyl, LVT, Timber |
| Applications | Transport Hubs, Shopping Centres, Hospitals, Sports Facilities, Industrial Buildings |
| MOQ | By Linear Metre |
| Lead Time | 15–20 Business Days |
Applications· Transport hubs and stations — airports, metro stations, bus terminals where slip-critical stair safety and high visibility are paramount
· Shopping centres and large retail environments — high daily pedestrian traffic requiring robust long-life stair nosing
· Hospitals and healthcare facilities — wide anti-slip coverage for patient and visitor safety; yellow insert aids step visibility for visually impaired users
· Sports venues and stadiums — concrete stair edge protection under heavy intermittent crowd loads
· Industrial and manufacturing facilities — wide profile provides maximum traction on stairs used by workers in heavy footwear
· External concrete stairs on public buildings — corrosion-resistant aluminium finish with wide anti-slip coverage
· Accessibility compliance projects — yellow insert + 60mm width meets step-edge contrast and coverage requirements of most accessibility codes
Installation Steps1. Measure tread width and cut D60 to length if required (metal saw or angle grinder with metal cutting disc).
2. Clean and prepare the tread edge surface.
3. Position D60 at the front edge of the tread.
4. Mark fixing positions through the pre-drilled countersunk holes (recommended spacing: 150–200mm for heavy-traffic applications).
5. Drill pilot holes appropriate for your substrate.
6. Fix with countersunk screws (stainless steel recommended for outdoor applications).
7. Snap the PVC insert into the aluminium channel.
8. Check alignment and flush fit along the full length.
FAQQ: When should I specify D60 instead of D50?
A: Specify D60 when your project requires: wider anti-slip coverage (60mm vs. 50mm); heavier traffic loads; or a larger visual step edge marking for accessibility compliance. The D50 is the standard commercial specification; the D60 is the heavy-duty or accessibility-enhanced specification.
Q: Is D60 suitable for concrete stair nosing applications?
A: Yes. The D60 is frequently specified for concrete stair nosing installations in public buildings and transport facilities. The aluminium base is mechanically fixed with masonry screws into the concrete tread — no adhesive required.
Q: Can the D60 nosing be used on external stairs exposed to weather?
A: Yes. Use powder-coated aluminium for maximum weather resistance and stainless steel fixing screws for outdoor installations. The PVC insert is UV-stable for standard outdoor exposure.
