Hospital Handrail Height Standards: ADA, EN, ISO and Country-by-Country Guide

Hospital handrail height is one of the most frequently asked specification questions in healthcare construction — and one of the most commonly misconfigured elements in completed projects. Getting the height wrong means failed inspections, expensive retrofit, and — in the worst case — patients who cannot use the handrail because it is positioned outside their comfortable reach range.

This guide covers the specific height requirements for hospital corridor handrails under the four most widely applied international standards, a country-by-country reference table, and the practical installation considerations that determine where on the wall the bracket ends up.

What “handrail height” actually means

Before covering the numbers, it is important to clarify what is being measured. Handrail height in all major standards is measured from the finished floor level (FFL) to the top of the gripping surface — not to the top of the handrail body or to the centre of the grip tube.

For a hospital wall handrail with a PVC grip and aluminum body — such as the HR-140 series — the gripping surface is the rounded top of the PVC tube or grip element. On a 140mm wide handrail body with a 38mm diameter grip tube, the grip centre sits approximately 50–60mm above the bottom edge of the handrail profile.

This means the installation height of the bottom bracket fixing point must account for both the handrail body height and the position of the grip within the profile.

ADA (Americans with Disabilities Act) — United States

The ADA standard most relevant to hospital corridor handrails is ADA Standards for Accessible Design, Section 505 (Handrails) and the referenced ANSI A117.1.

Key requirements: - Height: 34 inches minimum to 38 inches maximum (865mm to 965mm) above the walking surface, measured to the top of the gripping surface - Wall clearance: Minimum 1.5 inches (38mm) between the gripping surface and the adjacent wall - Grip diameter: 1.25 to 2 inches (32–51mm) for circular cross-sections - Continuity: Handrails must be continuous along the full corridor length; interruptions are only permitted at doorways and direction changes

The 34–38 inch range is a compliance window, not a recommendation. For general hospital corridors serving mixed patient populations (ambulatory, wheelchair, and stretcher users), most healthcare facility planners specify 36 inches (915mm) as the target height — midpoint within the range and accessible to the broadest range of users.

For paediatric hospitals or paediatric wings, ADA Section 505 notes that where handrails will be primarily used by children, a secondary lower rail at 28 inches (710mm) may be appropriate in addition to the standard-height rail.

EN ISO 21542 — European Standard

ISO 21542:2021 (Building construction — Accessibility and usability of the built environment) is the primary international reference standard and is implemented in most European countries, as well as serving as the reference for national standards in many other regions.

Key requirements: - Height: 900mm (±50mm) above the floor to the top of the gripping surface — effectively a range of 850–950mm - Wall clearance: Minimum 45mm between the handrail and wall surface - Grip diameter: 32–50mm for circular profiles - Continuity: Handrails should extend 300mm horizontally beyond the top and bottom of any stair or ramp

At 900mm, the ISO 21542 requirement is meaningfully higher than the ADA midpoint of approximately 915mm (36 inches) — effectively very close. The practical difference for international hospital projects is minimal.

Australian Standard AS 1428.1

Australia’s primary accessibility standard for buildings is AS 1428.1:2009 (Design for access and mobility — General requirements for access).

Key requirements: - Height: 865mm minimum to 1000mm maximum above the floor, measured to the top of the gripping surface - Wall clearance: Minimum 45mm between the handrail gripping surface and the wall or adjacent surface - Grip diameter: 30–50mm for circular profiles

The Australian standard has the widest permitted range of any major standard — 865 to 1000mm (approximately 34 to 39.5 inches). For hospital corridors in Australia, most projects specify 900–950mm to remain comfortably within range while accommodating the diverse patient population.

UK Building Regulations (BS 8300:2018)

The UK standard for accessible design is BS 8300:2018 (Design of an accessible and inclusive built environment).

Key requirements: - Height: 900mm above the floor for corridors and ramps (measured to the top of the gripping surface) - Wall clearance: Minimum 60mm between the centre of the gripping surface and the wall - The standard distinguishes between handrails for ambulant users (higher tolerance for variation) and handrails in healthcare facilities serving patients with mobility limitations (tighter tolerance, continuous installation required)

Country-by-Country Reference Table

Note: Japan’s requirement is notably lower than other major standards. Specify to the applicable national standard for the project location.

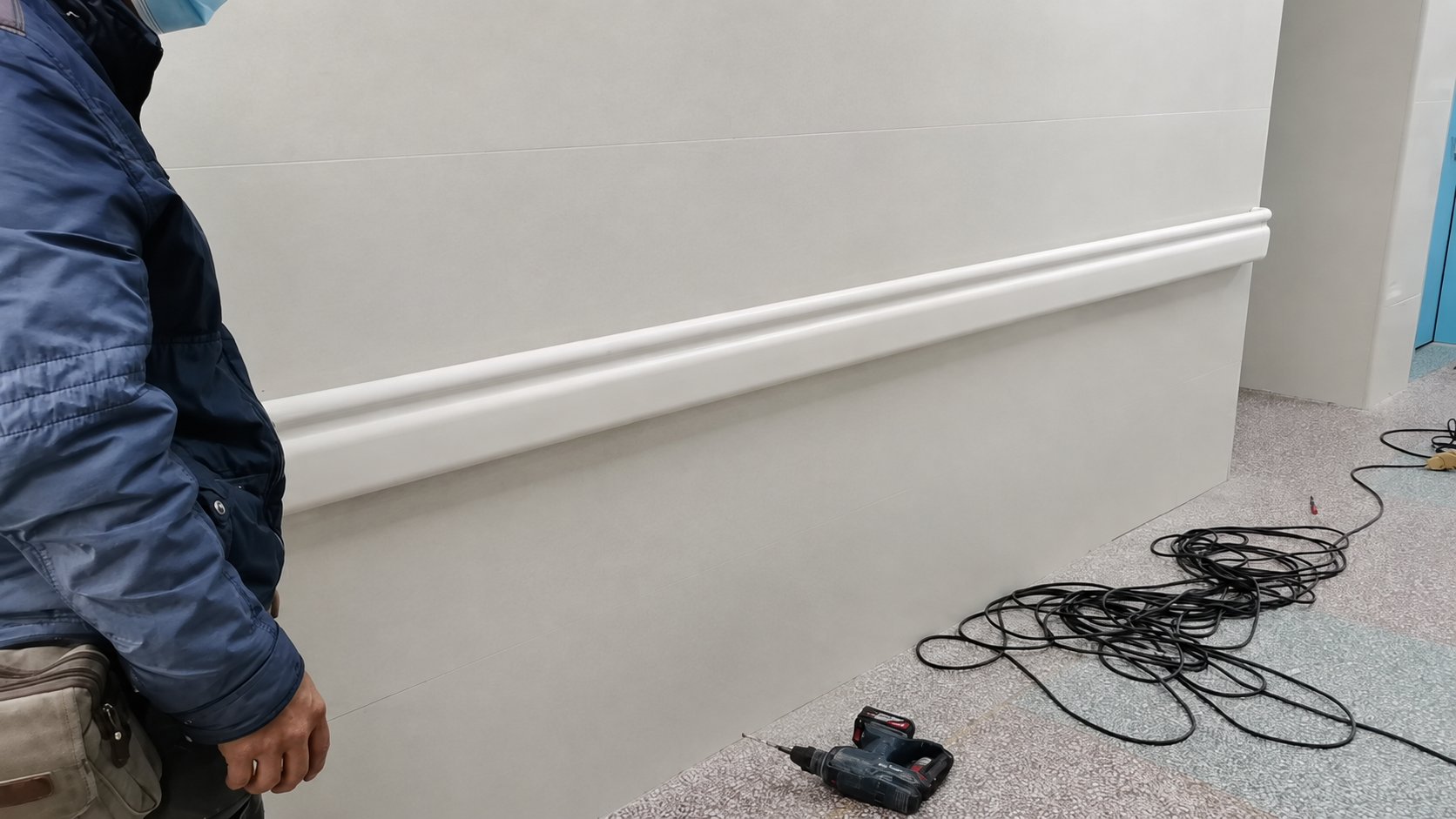

Practical installation considerations

Where does the bracket sit on the wall?

For a standard HR-140 hospital handrail (140mm body height, 38mm grip diameter), if the target grip height is 900mm (top of gripping surface):

•        The centre of the grip tube is at approximately 900mm from FFL

•        The bottom of the 140mm handrail body is at approximately 900 - 140 = 760mm from FFL

•        The bracket fixing point (typically at the lower third of the body) is at approximately 780–800mm from FFL

This means the wall bracket holes need to be drilled at approximately 780–800mm above the finished floor for a 900mm grip height installation.

Floor level variation

In healthcare facilities with floor drainage or gradients (such as treatment rooms, sluice rooms, or some ICU areas), the floor level may not be consistent along the corridor. Always measure handrail height from the finished floor level at each bracket point, not from a single reference point.

Threshold transitions

At doorways, where the handrail must be interrupted, the standard practice is to terminate the handrail 50–100mm from the doorframe face on each side, capped with the appropriate end cap. Do not abruptly terminate handrail profiles without end caps — exposed aluminum or PVC edges are a cutting hazard.

Corner transitions

At corridor corners, use the appropriate inside or outside corner elbow fitting for the handrail profile. Most hospital handrail systems (including the Jincheng HR series) include moulded PVC elbow fittings in the corresponding width for 90° inside and outside corners.

FAQ

Q:Can hospital handrail height be adjusted after installation?

A:No. Once installed into wall brackets, the handrail height is fixed. The only way to change it is to re-drill the bracket positions. This is why correct pre-installation marking and height verification is critical before any drilling begins.

Q:What if the facility’s national standard is stricter than ADA?

A:Always comply with the stricter of the national standard and ADA (or the applicable international standard). For international hospital projects, the design team typically specifies which standard governs.

Q:Is the same height requirement used for grab bars in bathrooms?

A:No. Grab bar height requirements in bathrooms and WC areas follow a different set of requirements from corridor handrails. Toilet-side grab bars are typically 840mm to the top of the gripping surface; shower grab bars vary based on the type (angled, vertical, horizontal). Consult ADA Section 604 (Water Closets) for bathroom grab bar requirements.

Q:Does handrail height affect which Jincheng HR model to specify?

A:No. All HR series models (HR-038, HR-089, HR-140, HR-143, HR-159, HR-200) are designed to be installed at the required compliance height. The model selection is based on the required corridor protection profile width, not installation height.
