Product Features
· Integrated dual-function profile — upper 38mm round grip rail provides ergonomically correct hand grip; lower 127mm flat bumper rail provides wide wall impact protection zone
· Heavy-duty aluminum retainer — 1.4mm / 1.6mm thickness; structural rigidity across the full 143mm profile width
· Antibacterial PVC/vinyl cover — continuous surface antibacterial action; flame-retardant, waterproof, chemical-resistant, easy-clean
· Stainless steel bracket installation — drilling with stainless steel brackets; secure mechanical wall fixing for all substrate types
· Compatible with EU healthcare handrail specifications — dual-rail profile meets European clinical design guidelines for grip rail diameter and wall protection width
· Pantone custom color matching — all colors available; suitable for coordination with hospital interior color systems
· 4m standard sections with custom length option
Product Specifications
| Model | HR-143 |
| Profile width | 143mm ( grip rail + bumper rail) |
| Standard length | 4000mm (custom 1m–6m) |
| Construction | Heavy-duty aluminum retainer + vinyl / PVC cover |
| Aluminum thickness | 1.4mm / 1.6mm |
| Design | Upper section: round grip rail / Lower section: flat bumper rail |
| PVC cover features | Flame-retardant, antibacterial, waterproof, chemical-resistant |
| Installation method | Drilling with stainless steel brackets and screws |
| Color options | Pantone custom matching available (22 standard colors) |
| Load capacity | 200 kg/m |
| Applications | Hospital corridors, stairways, rehabilitation centers, nursing homes, medical schools |
| Packaging | 4m/pc, standard export packaging |
Applications
· Hospital corridor and ward corridors — where clinical specifications require a distinct round grip rail alongside a wide crash protection element
· European hospital projects — HR-143 is particularly aligned with European healthcare design standards specifying integrated grip + crash rail profiles
· Rehabilitation center walking corridors — ergonomic 38mm grip rail assists patients rebuilding hand grip strength and ambulation confidence
· Nursing home corridors — distinct grip profile aids elderly residents with reduced hand strength who need clear tactile guidance when gripping the handrail
· Medical school and educational healthcare buildings — specification-grade dual-function handrail for buildings with formal accessibility standards
Installation Steps
1. Determine mounting height — standard clinical specification is 850–900mm from finished floor to top of handrail. Confirm the specified height with your facility's design team or accessibility consultant before marking.
2. Mark the bracket positions along the corridor wall at the determined height. Standard bracket spacing is 500–600mm for clinical corridor use; 400–500mm for stairwell installations where dynamic loading is higher.
3. Locate structural substrate — confirm that all fixing positions have solid wall substrate (masonry, concrete or timber stud) behind the wall finish. Do not fix brackets to plasterboard alone without structural backing.
4. Drill pilot holes at each marked bracket position using an appropriate masonry or timber drill bit for your wall substrate. Clean drilling dust from each hole.
5. Insert wall anchors appropriate for your substrate type (stainless steel anchors for wet areas, standard expansion anchors for dry areas).
6. Mount the ABS wall brackets using the supplied stainless steel screws. Use a spirit level to confirm all brackets are at the same height across the installation run before final tightening.

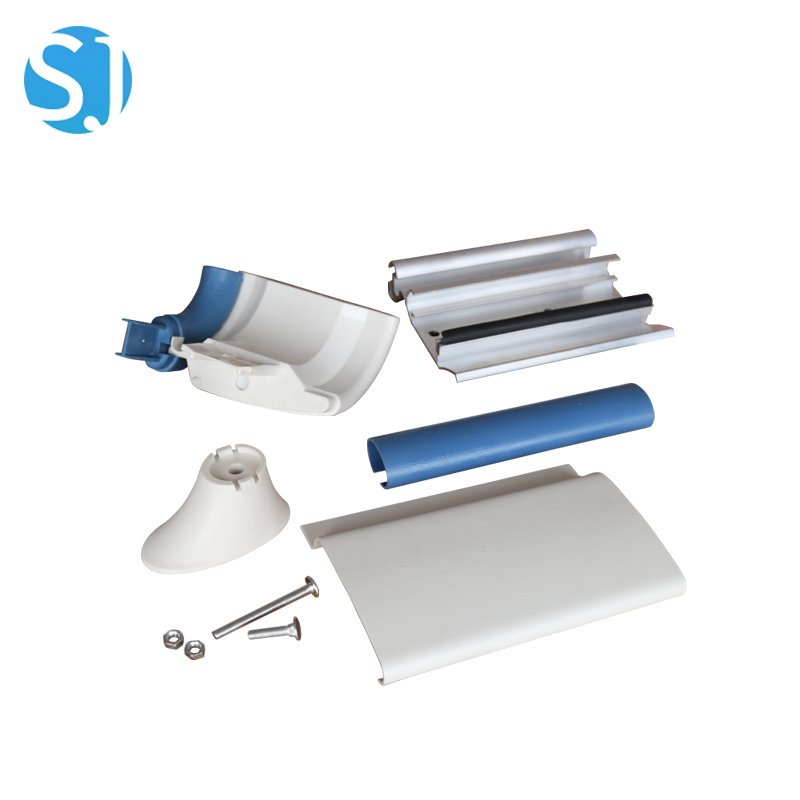

7. Slide the aluminum retainer onto the mounted brackets. For continuous runs, butt-join sections with the supplied aluminum joining connectors.
8. Fit the PVC/vinyl cover over the aluminum retainer. The cover clips onto the retainer and snaps securely into position along the full length.
9. Fit ABS end caps and corner fittings at the ends of each run and at wall corners. End caps should be pressed firmly until they click into the retainer profile.
10. Apply a firm lateral and downward load to the installed handrail at multiple points to confirm secure fixing before the corridor is returned to use.
The HR-143's dual-profile construction means the upper grip rail and lower bumper section are connected but functionally distinct. When installing at corners, ensure corner fittings are selected for the 143mm profile width (not the narrower HR-140 corner fitting). Corner fittings are supplied separately — specify HR-143 corner fittings when ordering accessories.
Product Advantages
· Single installation for two functions — eliminating the need to specify and install a separate grip rail and crash rail reduces installation time, wall fixing count and project cost
· European specification compliance — profile dimensions align with European healthcare corridor handrail guidelines, making HR-143 the standard Jincheng specification for European and international projects with EU-aligned design standards
· Comfort grip for patients with reduced hand strength — the 38mm round upper rail provides a full-hand grip surface that patients with arthritis, post-stroke weakness or limited grip strength can use effectively, compared to gripping a wide flat profile
FAQ
Q: How does HR-143 differ from HR-140 given the similar 140mm-class width?
A: HR-140 has a single continuous curved profile that functions as both grip surface and wall protection across its full 140mm width. HR-143 has a distinct round pipe-shaped upper grip rail and flat lower bumper — two separate functional zones in one profile. HR-143 provides a more ergonomically defined grip surface but has a more complex profile. Specify HR-140 for standard corridor applications; specify HR-143 where European-aligned specifications require a distinct round grip rail diameter.
Q: What bracket type does HR-143 use compared to HR-140?
A: HR-143 uses stainless steel drilling brackets. HR-140 uses ABS thickened brackets. The stainless steel brackets of HR-143 provide higher mechanical strength appropriate for the heavier 143mm profile. All brackets are included in the HR-143 order.
