Product Features
· Curved profile face — softer architectural design line compared to standard flat wall guard profiles
· 200mm width — same wide coverage as the flat WG-200B equivalent
· Reinforced aluminum core — structural impact absorption capacity matching the WG-200B specification
· Antibacterial, flame-retardant PVC cover
· Rounded contact surface — distributes incidental contact force across a curved area
· Concealed bracket installation
· Pantone custom color matching available
Product Specifications
| Model | WG-200D |

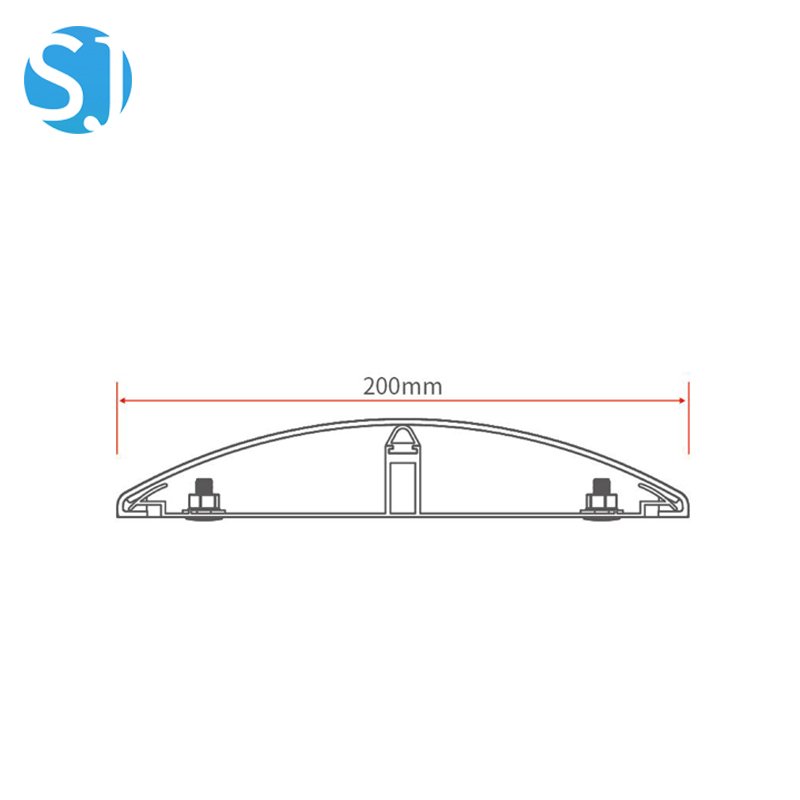

| Profile width | 200mm |
| Profile design | Curved face (architectural) |
| Standard length | 4000mm (custom available) |
| Construction | Reinforced aluminum core + PVC / vinyl cover + ABS accessories |
| Aluminum thickness | 1.6mm |
| Cover features | Flame-retardant, antibacterial, waterproof |
| Mounting height | Typically 450–600mm |
| Installation method | Wall-mounted with concealed brackets |
| Color options | Pantone custom matching available |
| Applications | Premium hospitals, hotel healthcare facilities, architectural specification projects |
| Packaging | 4m/pc, standard export packaging |
| MOQ | By linear metre |
Applications
· Premium hospital main corridors and reception areas — curved profile contributes to a softer, more welcoming corridor aesthetic in first-impression areas
· Hotel healthcare and wellness facility corridors — architectural design line that integrates with hospitality interior design standards
· Executive and VIP patient floors — premium curved profile appropriate for high-specification patient areas
· Architectural specification projects — where the design brief specifically calls for curved rather than flat wall protection profiles
Installation Steps
1. Determine mounting height — standard bumper protection height is 450-550mm from finished floor to the centre of the profile. This zone corresponds to typical cart, hospital bed frame and wheelchair footrest contact height. Confirm with your facility's specification or design team.
2. Mark bracket positions at 500-600mm spacing along the corridor wall.
3. Confirm structural wall substrate at all fixing positions — solid masonry, concrete or timber stud backing is required.
4. Drill pilot holes at each marked position, insert appropriate wall anchors for your substrate type.
5. Mount the ABS brackets using the supplied stainless steel screws, confirming level alignment along the full run with a spirit level.
6. Slide the aluminum core onto the mounted brackets. For continuous runs, butt-join sections with aluminum joining connectors.
7. Fit the PVC/vinyl cover over the aluminum core — the cover clips and snaps securely into position along the full length.
8. Fit ABS end caps and corner fittings at run ends and wall corners.
9. Apply a firm load test at multiple points along the installed wall guard before the corridor is returned to use.
The curved profile installs using the same bracket and fixing system as the flat WG-200B — no additional installation complexity is introduced by the curved face design.
Product Advantages
· Architectural differentiation — the curved profile distinguishes premium project specifications from standard flat wall guard installations, supporting a more considered interior design language
· Equivalent performance to flat profile — no impact protection compromise; the curve is a design choice layered onto the same structural specification as the WG-200B
FAQ
Q: Does the curved profile provide different impact protection than the flat WG-200B?
A: Both provide equivalent impact absorption capacity at the same 200mm width and aluminum core specification. The curve is an architectural design feature, not a performance modification. Some specifiers note that the curved surface distributes incidental contact force across a rounded area rather than a flat edge, which can feel marginally softer on contact, but the structural impact absorption rating is equivalent.
Q: Can WG-200D be specified in colors to match WG-150 or HR Series products in the same project?
A: Yes. WG-200D is available with Pantone custom color matching, allowing color coordination with other WG Series and HR Series products in the same project specification.
