Product Features
· Wide-format rigid PVC construction — greater wall coverage than the 50mm corner guard range
· No internal aluminum retainer — lighter weight and lower material cost than CG-70B, while still using rigid (not flexible vinyl) PVC for structural rigidity
· Surface-mounted installation — straightforward fitting without requiring the drilled aluminum bracket system of the CG-70B
· Impact-resistant — protects wall corners from trolley, cart and stretcher contact in daily hospital, school and commercial use
· Easy to clean — smooth rigid PVC surface compatible with standard cleaning protocols
· Durable — rigid PVC construction resists deformation under sustained moderate impact
Product Specifications
| Model | CG-70A Rigid PVC Corner Protector |
| Type | Wide-format rigid PVC corner guard (no aluminum core) |
| Material | Rigid PVC |
| Length | 3000mm per section (custom lengths available on request) |
| Installation | Surface-mounted |
| Color options | Customizable (confirm available range on order) |
| Features | Impact-resistant, durable, easy to clean |
| Applications | Hospitals, schools, nursing homes, commercial buildings, public facilities |
| MOQ | By linear metre |
Applications
· Mid-traffic hospital corridor corners — corners needing more coverage than 50mm models without the cost of full aluminum reinforcement
· School and commercial building corners — general-purpose wide-format protection in moderate-traffic environments
· Budget-conscious renovation projects — wider coverage area at a lower material cost than aluminum-reinforced alternatives
· Retrofit projects on existing rigid wall finishes — surface-mounted installation suitable for a range of existing wall conditions
Installation Steps
1. Measure the corner height to be protected and cut the CG-70A section to length using a sharp utility knife or fine-tooth saw appropriate for rigid PVC.
2. Clean the wall corner surface — remove dust, grease and loose material; ensure the surface is dry.
3. Position the section against the corner to confirm fit and alignment before fixing.
4. Secure the corner guard via surface mounting per the specific fixing method supplied with your order (confirm whether your CG-70A shipment uses adhesive, clip, or screw fixing, as this should be specified at time of order).
5. Apply firm, even pressure or fixing torque along the full length to ensure secure, flush contact with both wall faces of the corner.
6. Fit any end caps or closures supplied with the order.
7. Allow any adhesive (if used) to cure fully before the corner is exposed to traffic, or confirm immediate load capacity if mechanically fixed.
Product Advantages
· Practical mid-tier specification — fills the gap between compact 50mm corner guards and full aluminum-reinforced 70mm+ options, for projects where moderate coverage and moderate cost are both priorities
· Lighter weight than aluminum-core alternatives — easier to handle and install, particularly useful for large-quantity school or commercial renovation projects
FAQ
Q: What is the difference between CG-70A and CG-70B?
A: CG-70B is built with a 6063-T5 aluminum retainer beneath a 2.0mm rigid PVC cover, fixed by drilling — the maximum-durability specification in the 70mm+ wing size range. CG-70A is constructed from rigid PVC without the internal aluminum core, offering wide-format coverage at a lower weight and cost. Specify CG-70B for the highest-traffic corners requiring maximum structural reinforcement; specify CG-70A where moderate traffic and budget considerations make the lighter rigid PVC construction the more practical choice.
Q: Is CG-70A suitable for the same applications as CG-50A?
A: Both are PVC-based, lighter-weight options compared to their aluminum-reinforced counterparts, but CG-70A offers a wider wing format than CG-50A's 50mm coverage. Choose CG-70A where you need broader corner coverage than 50mm provides; choose CG-50A where the compact 50mm format is sufficient and no-drill adhesive installation is the priority.

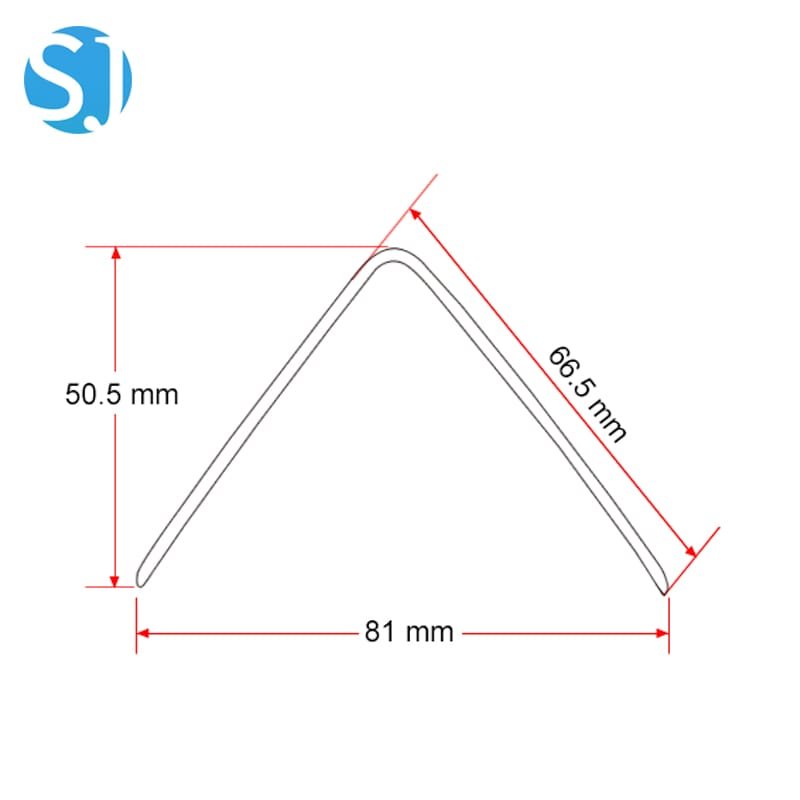

Q: What wing size and PVC thickness does CG-70A use?
A: Please contact our sales team to confirm the exact wing dimensions and material thickness for your project — these specifications can be finalized based on your specific corner protection requirements and order quantity.
